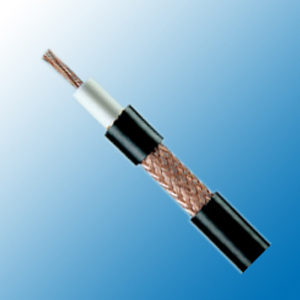

RG 213 PC
Construction
Inner conductor |
Plain copper |
7 x 0.75 mm |
Dielectric |
Low density PE |
Φ6.50 ± 0.15 mm |
Outer conductor (shield) |
Plain copper |
168 x 0.15 mm |
Shield coverage |
|
91% |
Sheath |
PVC or LSZH |
Φ9.50 ± 0.18 mm |
Electrical & Mechanical Characteristics
Impedance |
50±3 Ohm |
Nominal capacitance |
100 pF/m |
Velocity of propagation |
66% |
Insulation resistance |
>2000 Mohm.Km |
Inner conductor resistance |
6 Ohm/Km |
Outer conductor resistance |
7 Ohm/Km |
Operating temperature range |
-30 °C - +70 °C |
Copper weight |
59.6 Kg/Km |
Cable weight (approx.) |
135.1 Kg/Km |
Screening effectiveness |
>55 dB |
Attenuation
Frequency(MHz) |
Attenuation (dB/100 m) |
Attenuation (dB/100 ft) |
| 50 | 4.8 | 1.46 |
100 |
7.2 |
2.2 |
200 |
10.5 |
3.2 |
400 |
15.4 |
4.7 |
500 |
17.6 |
5.37 |
600 |
19.5 |
5.95 |
860 |
24.2 |
7.38 |
1000 |
26.5 |
8.08 |
Return Loss
30-300 MHz |
>27dB |
300-600 MHz |
>24dB |
600-900 MHz |
>23dB |
